BSF
Description

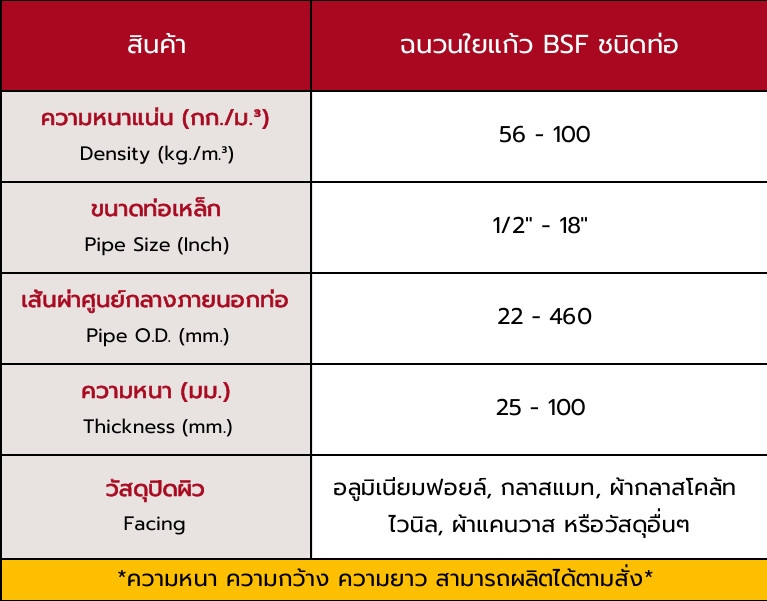

BSF Pipe Insulation is composed of inorganic glass fibers molded into rigid, on meter long, preformed sections of specific diameter and thickness. Rigid pipe insulation is available in iron pipe from 1/2 inch through 18 inch. Nominal wall thickness range from 25mm to 75mm.
BSF Pipe Insulation is supplied plain or with a factory-applied jacket for applications requiring an integral vapor barrier. The standard jacketing material is foil reinforced kraft (FRK) provided with a nominal 50mm. lap to facilitate closure and vapor sealing of the longitudinal joint.
Feature
BSF Pipe Insulation is supplied plain or with a factory-applied jacket for applications requiring an integral vapor barrier. The standard jacketing material is foil reinforced kraft (FRK) provided with a nominal 50mm. lap to facilitate closure and vapor sealing of the longitudinal joint.
Uses
BSF Pipe Insulation is recommended for use on all hot, cold, concealed and exposed piping operations from -20๐C to 450๐C (-4๐F to 850๐F) such as in residential, commercial and institutional building or in power and process plants. Outdoor or direct bury applications require additional protection from the elements.
- Thermal Performance BSF Pipe Insulation contributes to lower operating cost and increased efficiency of heating and cooling equipment.
- Vapor Barrier Low permeance, abuse resistant jackets provide a positive vapor seal when properly installed. Condensation is controlled, thereby maintaining thermal efficiency and preventing dripping water.
- Factory Applied Jackets greatly speed application, thereby reducing labor costs. Factory rather than field application of jacketing ensures and superior finished appearance and facilitates positive closure of the vapor barrier.
- SafeThe low flame spread of both jacketed and unjacketed pipe insulation ensures maximum safety in any type of construction.
Features
Features
Features
CERTIFICATE
